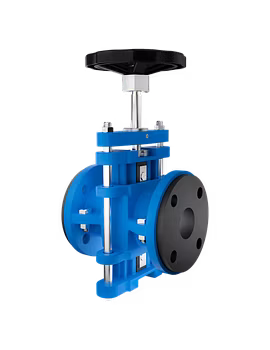

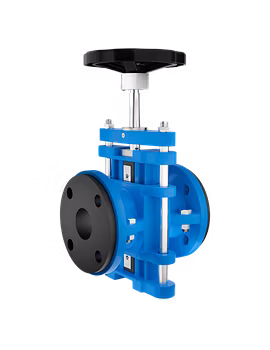

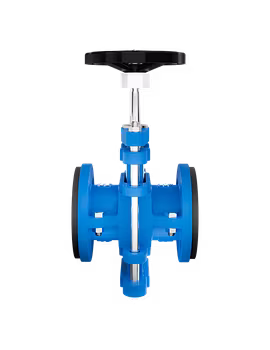

4MCPF Series Pinch Valve
ITC-HSN8481.80.30.
-
Product is not available
Minimum Order Quantity1
Accept Small Orders Yes
Fulfilment Capacity (Per Month)500
Country Of Origin : India
A 4MCPF Series Pinch Valve is a type of valve used to control the flow of fluids or gases through a pipeline by pinching the valve body with a flexible elastomer sleeve. The valve is operated manually using a handwheel that controls the movement of the pinch mechanism.
Key features:
Operation: Turning the handwheel applies pressure to the elastomer sleeve, constricting the flow passage to regulate or stop the flow.
Material: Typically used for handling abrasive or corrosive materials because the flexible sleeve can be made from durable rubber or other elastomeric materials.
Sealing Mechanism: The pinch valve provides a tight, bubble-tight seal when closed, making it suitable for applications where zero leakage is important.
Applications: Often used in industries like mining, chemicals, food processing, and water treatment, especially where solid or slurry transport is involved.
-
Additional Information
Why Choose Pinch Valve ?
- Continuous Improvement : We
consistently enhance our products
to meet evolving industry standards. - Quality & Performance : Our valves
are built with advanced technology,
ensuring reliability and safety. - Rigorous Testing : Every product
undergoes thorough testing
before dispatch. - Customer Satisfaction : We prioritize
100% satisfaction through superior
quality and service.
Specification :
Size Range : 40MM To 300MM
Material : CI, DI, WCB, S.S.304, S.S. 316
Temperature : Upto 180 Degree
Pressure : Upto 6 kg
Application : Slurry, mining, chemical, waste water treatment
