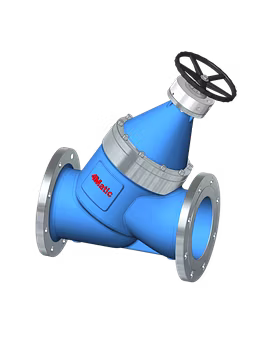

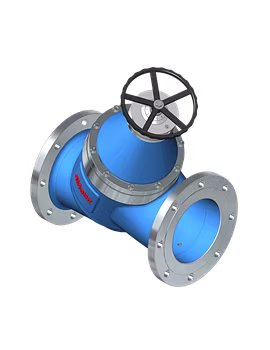

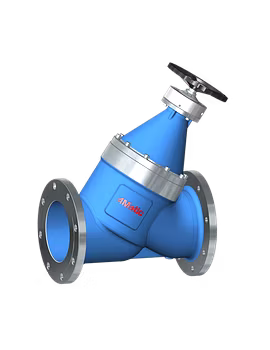

4MMOF Series Balancing Valve
ITC-HSN84818090
Price upon request
-
Product is not available
Minimum Order Quantity1
Accept Small Orders Yes
Fulfilment Capacity (Per Month)500
Country Of Origin : India
Working Principle
- The Balancing Valve operates by introducing adjustable resistance into a piping system to counteract frictional losses and ensure uniform water flow across all circuits. As a double regulating valve, it enables precise manual adjustment of flow and can also function as a shut-off device when needed.
- Flow regulation is achieved by adjusting the valve position using the handwheel, while a stem locking system secures the setting to prevent tampering. Integrated pressure test cocks allow connection to manometers or hydronic balancing systems to measure differential pressure and calculate head loss across the valve.
- By enabling accurate flow adjustment and pressure monitoring, the Balancing Valve ensures hydraulic balance in complex systems—making it essential for HVAC, heating, and chilled water applications.
-
Additional Information
Features:
- Y-Type Body Design :
Efficient flow path minimizes pressure loss and turbulence.
- Robust Construction :
High-grade cast body with corrosion-resistant internals for long-term durability. - Manual Flow Adjustment :
Handwheel-operated for accurate throttling and flow setting. - Flanged Ends :
Easy integration into piping systems, ideal for large-scale HVAC and industrial applications. - Position Indicator :
Clear visual indication of valve opening for better control and system monitoring
Specification :
- Size Range : 25 MM To 500 MM (Higher size on request)
- Body : Gun Metal / Cast Iron / S.S.
- Pressure Range : 16 kg/cm² / 410 kg/cm²
- Max. Inlet Pressure : 12 kg/cm²
- Temperature : Up to 85°C
- End Connection: Screwed / Flanged
- Y-Type Body Design :
-
