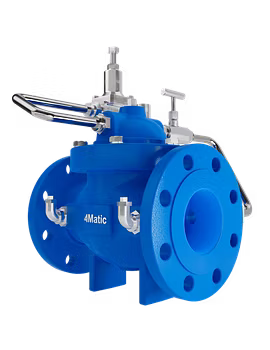

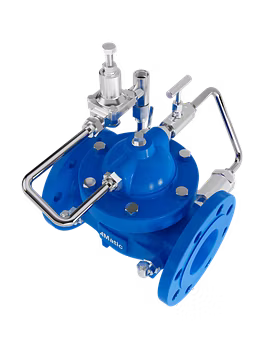

4MRPS Series Pilot Operated Pressure Reducing Valve
ITC-HSN84811000
-
Product is not available
Minimum Order Quantity1
Accept Small Orders Yes
Fulfilment Capacity (Per Month)500
Country Of Origin : India
4MRPS Series Pilot Operated PRV is basically designed for the applications where there is a need To reduce the high level inlet pressure to a safe and consistent level of pressure per the requirement of a particular application. Following figure displays three main constituents of 4MRPS Series Pilot Operated PRV.
Salient Features :
- Pipe breakage because of high pressure can be prevented through the use of Pressure Reducing Valve.
Corrosion resistance is enhanced due to Epoxy Coating. - Adaptability as far as sealing options are concerned. NBR, EPDM other material on request.
- High grade materials and robust design, provides durability to the PRV.
- Through the installation of Pressure Reducing Valve in the water supply pipeline, the outlet pressure
is maintained, regardless of the different inlet pressure.
-
Additional Information
Why Choose 4Matic PRVs?
The 4Matic Pilot Operated PRV isn’t just a valve it’s a commitment to safety, reliability, and innovation. Whether you’re operating in water distribution, industrial processing, or critical infrastructure, this valve delivers unmatched performance tailored to your needs.Applications:
- Water Distribution Systems: Ensures pressure regulation for efficient water flow.
- Industrial Pipelines: Safeguards systems in chemical plants, oil & gas refineries, and beyond.
- Critical Infrastructure: Provides reliable pressure management in high-stakes operations.
Specification :
- Body : CI / WCB / CF8 / CF8M
- Size Range : 1.1/2" To 32"
- Temperature : Up To 150°C
- Max Inlet Pre. : 12 kg / cm²
- Pre. Adjusting Range : 1-6 kg / cm² | 4-10 kg / cm² | 10-16 kg / cm²
- Seal : NBR / EPDM / Viton
- Ends : Flanged
- Application : Water / Oil / Gas
- Water Distribution Systems: Ensures pressure regulation for efficient water flow.
-
