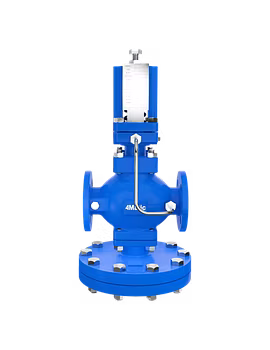

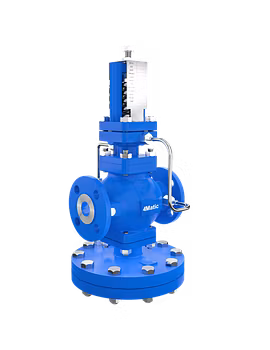

4MSTM Series Steam PRV

Write a Review

ITC-HSN84811000

Price upon request

  • Product is not available

Minimum Order Quantity1

Accept Small Orders Yes

Country Of Origin : India


Working Principle

As it is a 4MSTM Series Steam PRV it functions as an automatic control valve which is utilized to
reduce uncontrolled high level inlet pressure to a reduced and consistent outlet pressure regardless of
variations in upstream steam pressure. A 4MSTM Series Steam PRV is made use of in various steam
applications so as to regulate the flow of steam. Important for giving the right level of steam pressure in
plants, this valve, due to its crucial role, proves very supportive. Steam enters in the 4MSTM Series Steam PRV
at a high level pressure as compared to the required at the downstream. The valve assists in reducing
the pressure as per the needed level before it is supplied to the required place. In general, the 4MSTM Series
Steam PRV are utilized in industrial, commercial as well as institutional applications for regulating
steam pressure. The span of its usage includes oil lines, testing fixtures, single radiators, autoclaves,
vulcanizer, steam irons etc. 4MSTM Series Steam PRV is an automatic valve, which assures to control
the excessive pressure in a system. This valve is also called a steam pressure reducing regulator.

Add to Wishlist Add to Compare

  • Additional Information

    Specification


    • Screwed End : 15MM to 50MM (BSP / NPT)
    • Flanged End : 15MM to 80MM
      (150# / 300# / DIN / IS1538 / JIS )
    • Body : CI / DI / WCB / CF8 / CF8M
    • Pressure Rating : PN10 / PN16 / PN25 / PN40
    • Seat : Metal to Metal
    • Temperature : Upto 350° C
    • Pressure Range : 0.5 to 10 BAR | 10 to 20 BAR

    Features

    • 4MSTM Series Steam PRV do not require an external source of power or control.
    • They are more cost-effective due to their simple and straight forward design.
    • These valves provide quick and reliable performance.
    • Feedback controllers or separate measurement components are not required for their operation.
    • 4MSTM Series Steam PRV offer consistent performance and cost-effective maintenance.
    • As these valves have no stem packing, they eliminate external leakage and ensure high reliability.
